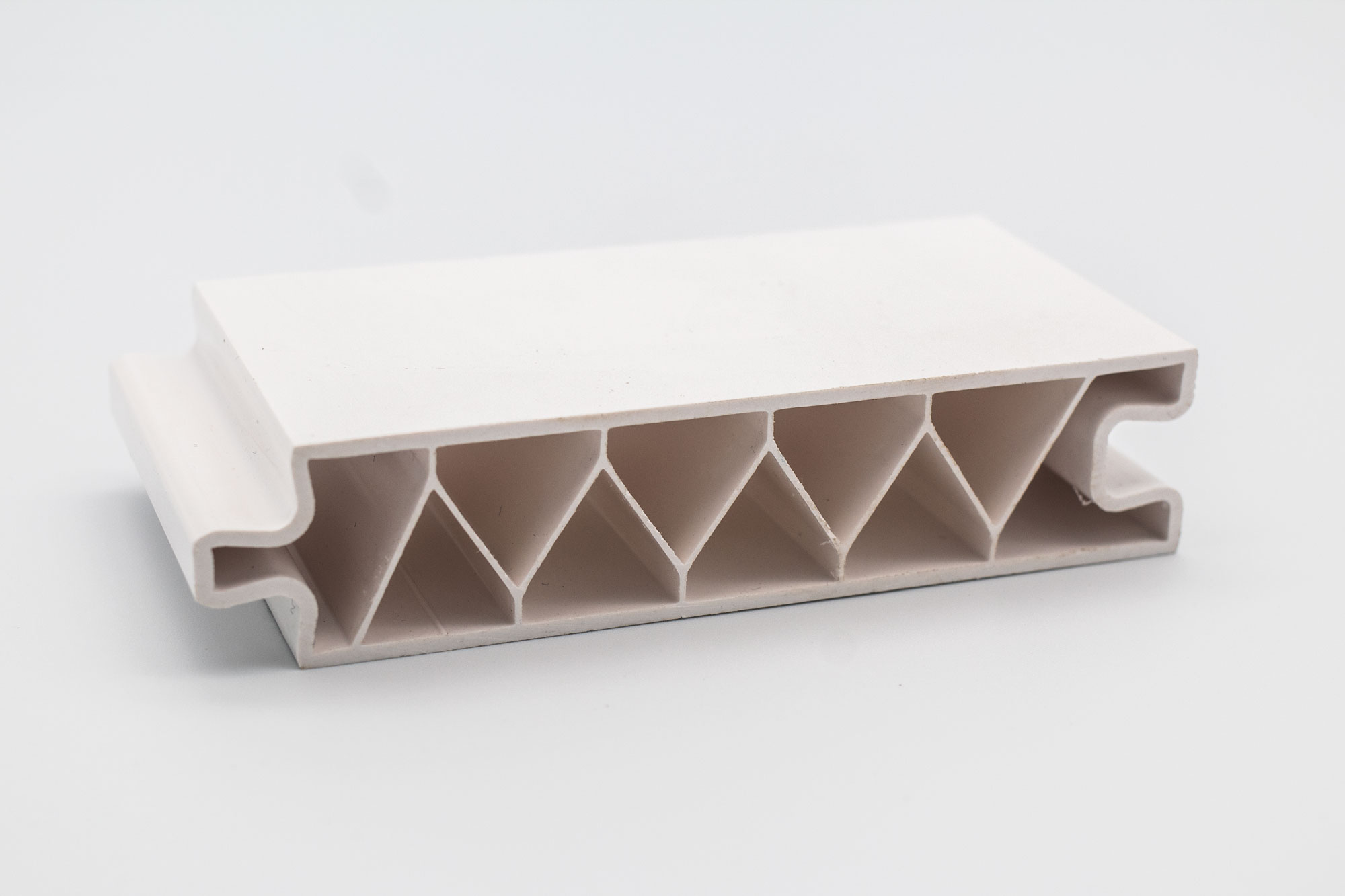

Panel door filling

SPECIFICATIONS
MaterialsPVC
Extrusion speed2-5 m/min
Dimensions of profile110x24 mm
Main wall thickness1.7 mm
Meter weight889 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableRED.LINE

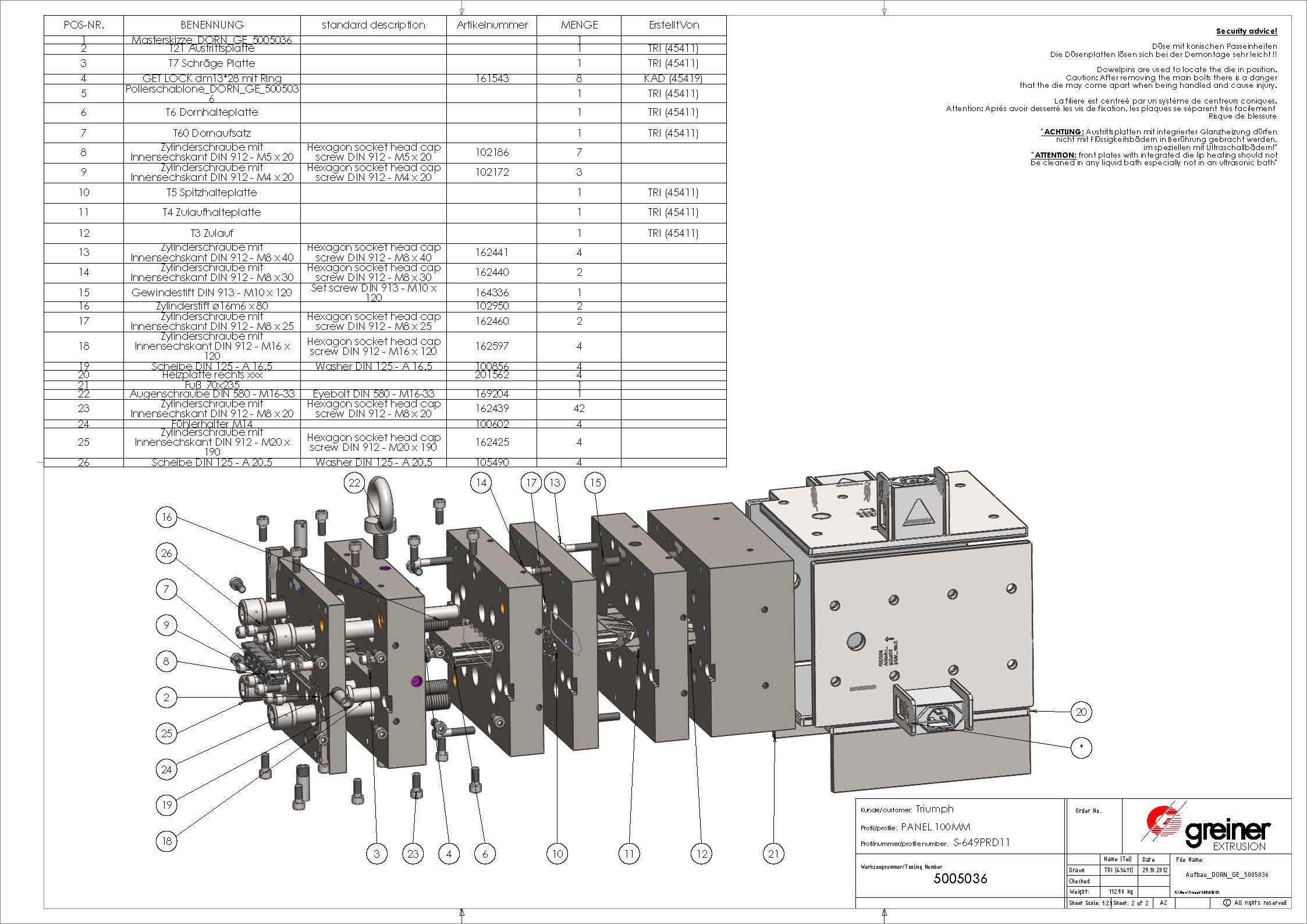

ToolingDie / Dry calibrator / Vacuum tank
Haul-offCaterpillar-haul-off
In-line profile processingFoiling
Cutting deviceSaw / Cutter
StackingTipping Table

Recommended Upgrades

MEASUREMENT SYSTEM

  • Inline quality data acquisition and possibility of automatic control with SHAPE.MATIC or WALL.MATIC

Special features

- Y inner walls = stiffer than straight inner walls
